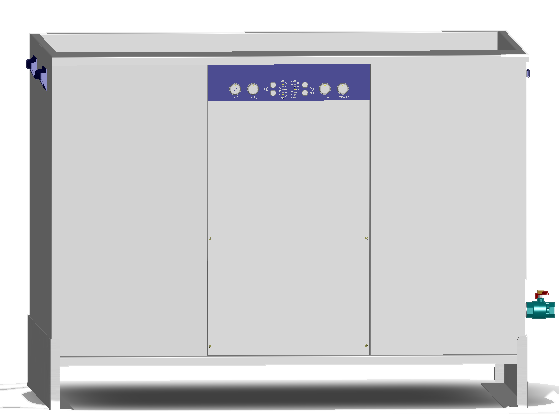

Technical description ultrasonic cleaner MARCO POOL

Ultrasonic cleaner type model 8050 HL

  • Mains connection version 400 V~  3 phase, 1N, 1PE
  • Mains connection version 440 V~  3 phase, 1PE
  • Ultrasonic frequency (kHz)   37
  • Power consumption total (W)   8050
  • Ultrasonic power effective (W)   2000
  • Ultrasonic peak performance max. (W)  8000
  • Heating power (W)   6000
  • Adjustable heating   30 – 80°C
  • Unit outer dimensions W / D / H (mm)  1240 / 800 / 990*
  • Tank internal dimensions W / D / H (mm)  1150 / 550 / 620
  • Tank max. volume (lit.)   383
  • Tank labour volume (lit.)   257
  • Basket inner dimensions W / D / H (mm)  1075 / 460 / 360
  • Mesh size of the basket (mm)   12 x 1.5
  • Weight (kg)    97
  • Material tank    stainless steel V2A
  • Material casing    stainless steel V2A
  • Drain     1“
  • Protection class    IP 21
